Construction And Industrial C Channel Metal Single Channel Steel

Construction And Industrial C Channel Metal Single Channel Steel

Model Number:	35ｘ19 Metal Strut Channel
MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Shape:

C Channel

Processing Performance:

Cutting, Decoiling, Punching, Welding, Bending

Usage:

Construction, Electromechanical, Machinery

Thickness:

0.5-3.0mm Or Customer's Requirements

Technique:

Cold Bending/Roll Forming

Service:

Custom Metal Fabrication Service

Material:

Metal

Suitable For:

Lightweight Supports, Photovoltaic Supports, Keels, Roof Trusses, Equipment Frames, Guardrails, Bridge Racks, Etc

Application:

Building Operations

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

industrial c channel metal

construction c channel metal

construction aluminum c channel

Product Description

Hot Selling Construction and Industrial C Channel Support Single Channel Steel

Product Description:

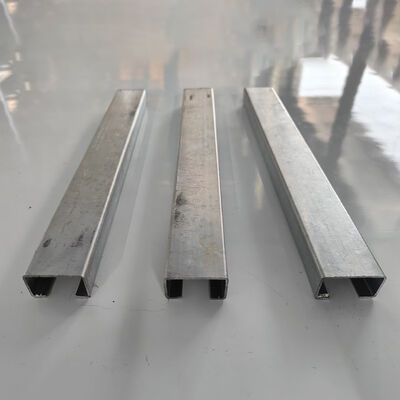

35×19 Metal Strut Channel is a lightweight cold-formed steel section with a cross-sectional dimension of 35mm in height and 19mm in width. It is made from high-quality hot-rolled steel plates of Q235B and Q355B grades, processed through precise cold bending techniques. It strictly follows the GB/T 6728-2017 standard and is commonly used in the field of lightweight structures. The wall thickness is typically 1.2mm - 2.5mm, and the surface can be treated with black material, hot-dip galvanizing, or electro-galvanizing. The hot-dip galvanized type can effectively resist rust and is suitable for outdoor and humid environments. It can be customized for length and processing methods as per requirements.
This type of steel has a regular cross-section, no burrs or deformations, high dimensional accuracy, and can be directly cut, drilled, welded, and bolted for installation. It is convenient to install without the need for complex equipment, significantly reducing construction time and labor costs. Its core features are distinct: Firstly, it is lightweight yet strong, with low self-weight, reasonable moment of inertia, outstanding bending and torsion resistance, meeting the requirements of lightweight load-bearing, and reducing the overall structure's self-weight and foundation pressure; Secondly, it has strong versatility, with a 35×19 cross-section suitable for small supports, keels, and other refined scenarios, allowing for flexible assembly and combination; Thirdly, it is corrosion-resistant and has a long lifespan, with mature surface treatment, maintaining stable performance both indoors and outdoors; Fourthly, it offers high cost-effectiveness, with mature production processes, high material utilization rates, and lower comprehensive procurement and processing costs.‌

Standard	ASTM
Place of Origin	China
Alloy Or Not	Non-Alloy
Application	Building operations
Grade	carbon steel
Shape	C Channel
Tolerance	±1%
Surface treatment	Galvanized Coated/Powder Coating
Processing Service	Bending, Welding, Punching, Decoiling, Cutting
Shape	C U Channel
Application	construction steel channel
Surface	Silvery
Certificate	ISO9001
port	tianjin
Application	Building ,Platform beam, blocking materials,etc.

Features:

1. Metal Strut Channel is formed by cold bending of hot-rolled coils, with a regular cross-sectional shape and a typical C-shaped structure, possessing excellent bending resistance. The wall thickness is uniform, and the dimensional accuracy of each part is high, which can meet the installation requirements of different projects.

2. Metal Strut Channel has the outstanding advantage of lightweight. Cold bending technology ensures structural strength while using relatively less steel, resulting in a lighter overall weight. Reduced the weight of the building, lowered the bearing pressure of the foundation, and reduced the cost of infrastructure construction

3. High quality steel is generally used as raw material for C-shaped steel. After cold bending processing, the internal structure of the steel is optimized, which improves the overall strength. It can withstand large loads and can be used as the main load-bearing component in building structures.

4. Good toughness ensures that C-shaped steel will not easily undergo brittle fracture when subjected to external impact. It can absorb and disperse energy to a certain extent, improving the seismic and fatigue resistance of the structure.

5. Metal Strut Channel is easy to cut, drill, and weld. In practical applications, C-shaped steel can be flexibly processed and assembled according to specific engineering requirements.

6. Metal Strut Channel can undergo various surface treatments, including hot-dip galvanizing, galvanizing, and painting. After surface treatment, C-shaped steel can effectively resist oxidation and corrosion, extending its service life.

Construction And Industrial C Channel Metal Single Channel Steel 0

FAQ:

Are you a factory or a trading company?

We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.

What's your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Generally within 30 days after receiving the payment. And partial shipment is allowed for big order.

Can you offer design service?

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.

What's the payment term?

30% deposit and 70% balance before shipment.

How to control the quality of your product?

a) Quality of the design: think about possible problems in advance and provide a high quality design solution. b) Quality of the raw material: choose the qualified raw material c) Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
