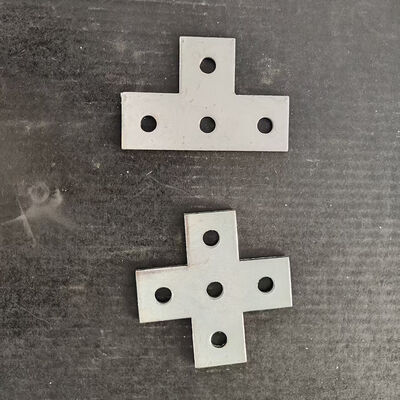

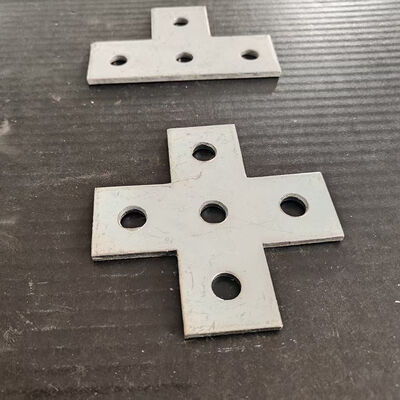

Multi Purpose 4 Hole T / Cross Type Bracket Pre Galvanized Strut Fitting Plate For Unistrut C Channel Connection

Multi Purpose 4 Hole T / Cross Type Bracket Pre Galvanized Strut Fitting Plate For Unistrut C Channel Connection

MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

C Channel T-Type

Material:

Q235B Carbon Steel (customizable To SS304/SS316)

Compatible Strut:

Fits Standard C Channels Like 41x21mm, 41x41mm (Unistrut-compatible)

Model:

4-Hole T Plate, 5-Hole Cross Plate (customizable)

Surface Finish:

Electro-galvanized / Hot-dip Galvanized (optional: Dacromet / Powder Coating)

Plate Thickness:

2.0mm / 2.5mm / 3.0mm (customizable)

Dimension Tolerance:

±0.5mm (precision Stamping For Perfect Fit)

Load Capacity:

Static Load: 600N-2500N (varies By Thickness And Model)

Corrosion Resistance:

OEM/ODM Available, Custom Size, Hole Pattern, Thickness, Finish

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

Pre Galvanized Strut Fitting Plate

Multi Purpose Strut Fitting Plate

Product Description

Multi-Purpose 4-Hole T / Cross Type Bracket, Pre-Galvanized Strut Fitting Plate for Unistrut C Channel Connection

Product Description:

Engineered for heavy-duty industrial use, our T-type and cross-type flat connectors deliver reliable load-bearing performance for demanding strut channel applications. Manufactured from thick-gauge steel with a hot-dip galvanized coating, these plates provide superior rust protection and structural rigidity, even in harsh environments with high humidity or exposure to the elements.

These multi-hole joining plates are specifically designed to connect three or four C-channel struts in a single plane, creating robust cross or T-joints for complex support systems. They are commonly used in commercial building ceilings, industrial pipe racks, warehouse shelving units, and solar mounting arrays, ensuring the stability and safety of heavy loads over time. The precision-cut holes guarantee a tight fit with standard bolts and nuts, eliminating the risk of loosening under vibration or dynamic loads. Available in multiple thicknesses and sizes to match your project’s strength requirements, these connectors are a trusted choice for contractors and engineers worldwide.

Parameter Item	Specification
Product Name	C Channel T-Type / Cross-Type Flat Connector Plate
Model	4-Hole T Plate, 5-Hole Cross Plate (customizable)
Compatible Strut	Fits standard C channels like 41x21mm, 41x41mm (Unistrut-compatible)
Material	Q235B Carbon Steel (customizable to SS304/SS316)
Surface Finish	Electro-galvanized / Hot-dip Galvanized (optional: Dacromet / Powder Coating)
Plate Thickness	2.0mm / 2.5mm / 3.0mm (customizable)
Hole Quantity	T-Type: 3-4 holes; Cross-Type: 4-5 holes (standard 4/5-hole design)
Hole Type	Standard Round Hole (fits M8/M10/M12 bolts, slotted holes optional)
Dimension Tolerance	±0.5mm (precision stamping for perfect fit)
Load Capacity	Static Load: 600N-2500N (varies by thickness and model)
Corrosion Resistance	Salt Spray Test ≥ 48 hours (standard galvanized finish)
Applications	Solar Mounting Systems, Cable Trays, Pipe Supports, Building Structures, Industrial Equipment Frames
Packaging	Standard Carton (customizable with pallet/anti-moisture packaging)
Customization	OEM/ODM available, custom size, hole pattern, thickness, finish
Standards Compliance	GB/T 13912-2002 (hot-dip galvanizing), ISO 9001 certified

Core Installation Steps (Key Points)

Engineered for durability and performance in harsh conditions, our T and cross-type strut connectors are a trusted choice for solar energy and outdoor industrial projects. In solar panel mounting systems, these plates are used to create rigid, multi-directional connections between C-channel rails, ensuring the stability of large-scale rooftop and ground-mounted solar arrays even under high wind and snow loads. Their corrosion-resistant galvanized finish makes them suitable for long-term outdoor exposure, including coastal and humid environments. Beyond solar installations, these connectors are widely used in sign mounting, outdoor equipment supports, and industrial pipe racks, where vibration resistance and structural integrity are critical. They are also commonly found in factory automation systems, conveyor line supports, and custom machinery frames, providing a flexible, cost-effective solution for connecting strut channels in any configuration.

FAQ:

Are you a factory or a trading company?

We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.

What's your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Generally within 30 days after receiving the payment. And partial shipment is allowed for big order.

Can you offer design service?

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.

What's the payment term?

30% deposit and 70% balance before shipment.

How to control the quality of your product?

a) Quality of the design: think about possible problems in advance and provide a high quality design solution. b) Quality of the raw material: choose the qualified raw material c) Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
