Heavy Duty Anti Vibration O Shape Pipe Hanger Clamp For Industrial Pipeline

Heavy Duty Anti Vibration O Shape Pipe Hanger Clamp For Industrial Pipeline

MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

C Channel Lock Nut Washer / Serrated Tooth Pad

Shape:

Round

Suitable Channel:

41x21mm / 41x41mm

Quality Grade:

AAA

Craftsmanship:

Extrusion Cold Rolling

Joining Technology:

Weld

Connection Method:

Flange Connection, Bolt Connection

Material:

Q235B

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

o shape pipe hanger clamp

industrial pipe clamps

industrial pipe hanger clamp

Product Description

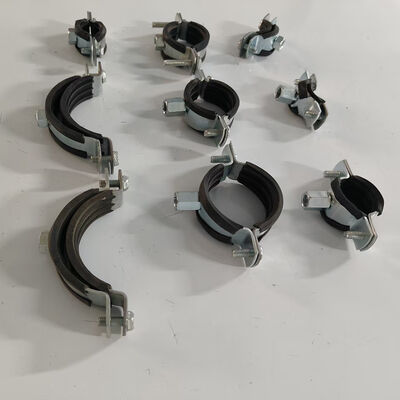

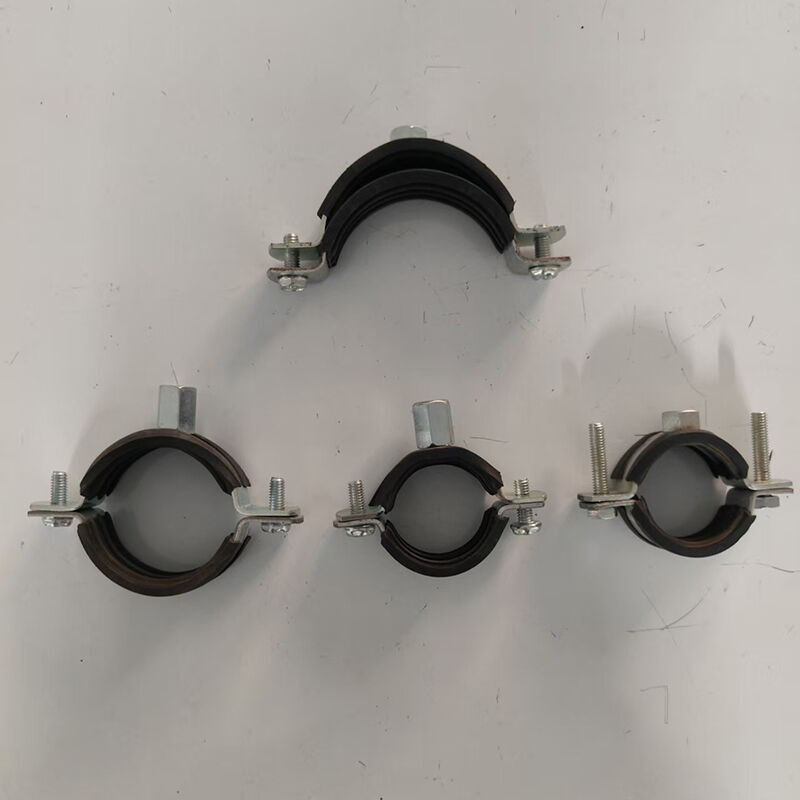

Heavy Duty Anti-Vibration O Shape Pipe Hanger Clamp for Industrial Pipeline

Product Description:

Engineered to solve vibration, noise and displacement issues in pipeline operation, this O-type pipe clamp features an innovative full-wrapping structure. The main body is stamped from high-quality cold-rolled steel for high strength and deformation resistance, with galvanized rust-proof treatment to maintain stable performance even in humid environments like basements and outdoor pipe wells.

The inner rubber pad is made of aging-resistant material, which not only effectively buffers pipe vibration and reduces noise transmission, but also enhances friction between the clamp and pipe to prevent rotation or sliding during long-term use.

The split design with bolt locking structure allows quick installation without complex tools, and supports fine-tuning for different scenarios. Widely used in HVAC, water supply and industrial fluid transportation systems, especially in pump rooms and machine rooms with high vibration, it ensures pipeline stability while reducing the impact of vibration on building structures.

Item	Details
Product Name	Locking Buckle Washer (for C‑Section)
Alias	Channel Buckle Washer / Strut Channel Fastener
Material	Q235B Steel / Stainless Steel 304/316
Surface Finish	Electro‑galvanized (≥5μm) / Hot‑dip Galvanized / Powder Coating
Standard	GB/T 3098.2‑2015 / ISO 898‑2
Grade	Class 8

Heavy Duty Anti Vibration O Shape Pipe Hanger Clamp For Industrial Pipeline 0

O-Type Pipe Clamp – Quick Installation Guide:

Preparation:
Ensure the clamp size matches the pipe outer diameter. Check that the bolt and nut are intact, and the rubber liner is in good condition.

Step 1: Position the Clamp
Align the two metal halves with the rubber liner. Insert the pipe into the rubber-lined loop. Make sure the rubber fully wraps the pipe surface – no direct metal contact.

Step 2: Close the Clamp
Bring the two metal halves together until the bolt holes align. Insert the bolt through the top holes and hand-tighten the nut.

Step 3: Tighten the Bolt
Use a wrench or socket to tighten the top bolt. Do not over-tighten – stop when the rubber liner is slightly compressed and the pipe is secure but not deformed. Over-tightening may damage the pipe or reduce rubber life.

Step 4: Mount to Support (Optional)
For suspension or wall mounting: Align the side hex nut with the threaded rod or mounting base, then lock with a nut.

FAQ:

Are you a factory or a trading company?

We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.

What's your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Generally within 30 days after receiving the payment. And partial shipment is allowed for big order.

Can you offer design service?

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.

What's the payment term?

30% deposit and 70% balance before shipment.
