41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System

Name: 41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System
Brand: Langfang Yaoguang New Energy Technology Co., Ltd
SKU: 41X21 Metal Strut Channel
Price: 0.90 USD
Availability: InStock

Model Number:	41X21 Metal Strut Channel
MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Strut Channel / C Channel / Unistrut Channel

Processing Performance:

Cutting, Decoiling, Punching, Welding, Bending

Usage:

Construction, Electromechanical, Machinery

Length:

1m-12m Or Customer's Requirments

Thickness:

1.5mm / 2.0mm / 2.5mm (Customizable)

Surface Treatment:

Galvanized Coated/Powder Coating

Technique:

Cold Bending/Roll Forming

Service:

Custom Metal Fabrication Service

Alloy Or Not:

Non-Alloy

Material:

Metal

Suitable For:

Lightweight Supports, Photovoltaic Supports, Keels, Roof Trusses, Equipment Frames, Guardrails, Bridge Racks, Etc

Application:

Building Operations

Feature:

Corrosion Resistant, High Strength, Easy Installation, Modular Design

Color:

Silver Zinc / Stainless Steel Natural Color

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

hot dip galvanized c strut channel

41x21 c strut channel

41x21 metal strut channel

Product Description

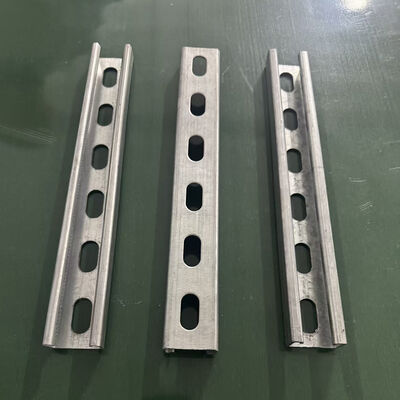

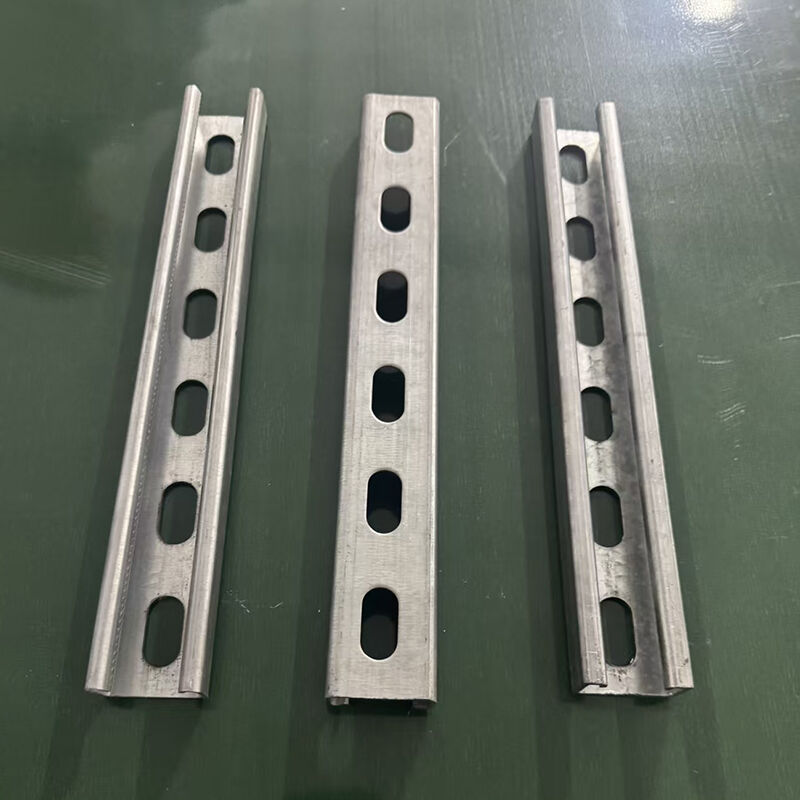

41X21 Hot Dip Galvanized Strut Channel C Channel for MEP Pipe Hanger System

Product Description:

This C-channel is the core profile for building mechanical and electrical support systems. Made of high-quality hot-rolled steel strip through cold forming, it features a uniform and dense hot-dip galvanized coating (over 85μm thick) for excellent rust and corrosion resistance. It performs stably in humid, acidic, or alkaline environments, with a much longer service life than ordinary steel.

The one-piece cold-formed process ensures high section strength and strong bending resistance, effectively dispersing the load of pipes, cable trays, and equipment to prevent deformation or fracture caused by single-point stress. Standard elongated holes on the surface allow quick installation without on-site drilling, compatible with spring nuts, bases, and connectors to greatly improve construction efficiency.

‌

Attribute	Details
Product Name	Strut Channel / C Channel / Unistrut Channel
Material	Q235 Carbon Steel / 304/316 Stainless Steel
Surface Treatment	Hot-dip Galvanized (HDG) / Electro Galvanized / Pre-Galvanized
Color	Silver Zinc / Stainless Steel Natural Color
Standard Sizes	41x21mm / 41x41mm / 41x62mm (Custom sizes available)
Thickness	1.5mm / 2.0mm / 2.5mm (Customizable)
Length	1m / 2m / 3m / 6m (Custom cut lengths available)
Hole Type	Solid / Slotted / Custom Drilled Holes
Load Capacity	Light Duty / Medium Duty / Heavy Duty (Customizable)
Feature	Corrosion Resistant, High Strength, Easy Installation, Modular Design
Application	Pipe Hanger, HVAC, Fire Protection, Electrical Tray, MEP Support System, Steel Structure
Certification	ISO9001, RoHS Compliant
Customization	OEM & ODM Available (Custom size, thickness, hole pattern, finish)
Packing	Bundled + Pallet / As per customer's requirement

Features:

Available in a full range of sizes for different load levels, it is widely used in water supply, HVAC, fire protection, and electrical installations, serving as an essential core profile for both new construction and retrofitting projects.

41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System 0

FAQ:

Are you a factory or a trading company?

We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.

What's your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Generally within 30 days after receiving the payment. And partial shipment is allowed for big order.

Can you offer design service?

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.

What's the payment term?

30% deposit and 70% balance before shipment.

How to control the quality of your product?

a) Quality of the design: think about possible problems in advance and provide a high quality design solution. b) Quality of the raw material: choose the qualified raw material c) Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
