Unistrut Channels 30x28 Electro Galvanized L Shape Punched Metal Bracket Modular Support Fitting for HVAC Pipe Hanging Systems

Name: Unistrut Channels 30x28 Electro Galvanized L Shape Punched Metal Bracket Modular Support Fitting for HVAC Pipe Hanging Systems
Brand: Langfang Yaoguang New Energy Technology Co., Ltd
SKU: customizable
Price: 0.90 USD
Availability: InStock

Model Number:	customizable
MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Perforated Galvanized Steel L-Shaped Support Bracket

Model Number:

Standard Sizes Available (Custom Sizes Supported)

Thickness:

2.0mm-4.0mm Optional (Balanced Strength & Load Capacity)

Surface Treatment:

Hot-Dip Galvanized / Electro-Galvanized (Anti-Corrosion)

Material:

High-Grade Q235B Carbon Steel

Application:

Solar Mounting, Cable Tray, HVAC, Pipe Hanging, Industrial Support

Mechanical Performance:

High Load-Bearing Capacity, Stable Structural Support

Installation Efficiency:

Quick & Easy Assembly, No On-Site Welding Required

Customizable Items:

Length, Width, Hole Spacing, Size, And Finish

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

Unistrut Channels electro galvanized L bracket

HVAC pipe hanging support fitting

punched metal modular bracket Unistrut

Product Description

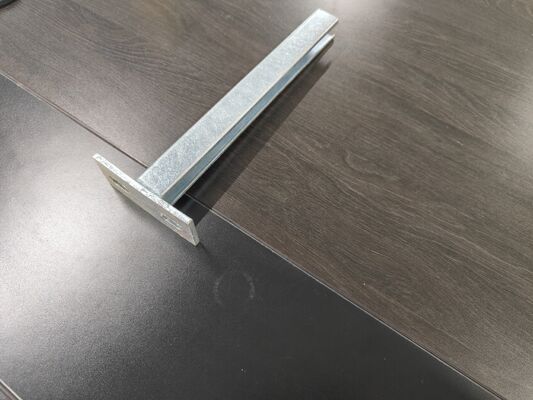

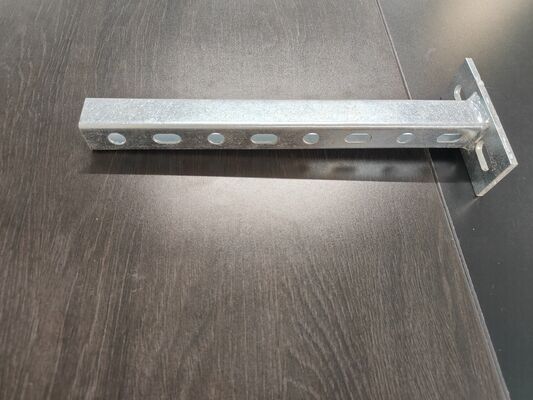

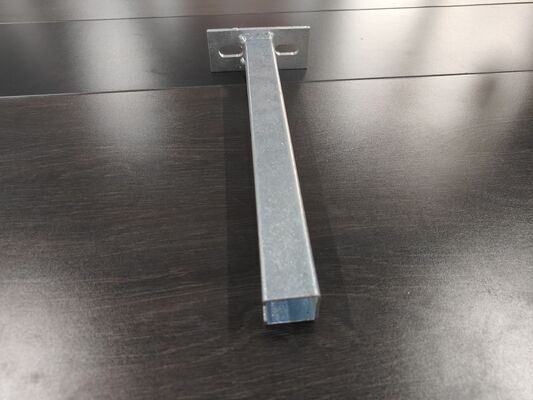

30×28 Electro‑Galvanized L‑Shape Punched Metal Bracket, Strut Channel Fitting for HVAC and Pipe Hanging Systems

Product Description:

This 30×28 L‑shaped punched metal bracket is a modular supporting fitting built for flexible field assembly and good compatibility with strut channel systems. Fabricated from premium Q235B carbon steel and finished with uniform electro‑galvanized treatment, it delivers reliable anti‑corrosion performance and low‑maintenance properties. Pre‑fabricated oblong slotted holes match most standard strut‑channel hardware, supporting fast installation, position adjustment and on‑site re‑arrangement to adapt to changing project layouts.

Commonly deployed for HVAC duct supports, pipe hanging, electrical cable routing and general building‑construction applications. The high‑strength steel substrate realizes even load dispersion. Custom hole pitches and dimensional options are available to satisfy special design requirements. We support full‑range customization including custom overall dimensions, hole layouts and surface finishes. Strict factory quality inspection plus export‑standard packaging enables worldwide sea shipment, complying with international product‑quality requirements.

Specification Item	Details
Product Name	30×28 Perforated Electro‑Galvanized L‑Shaped Support Bracket
Model Number	30×28 standard size, custom sizes acceptable
Material	High‑Grade Q235B Carbon Steel
Surface Treatment	Electro‑Galvanized for corrosion resistance
Hole Design	Precision Slotted / Oval Holes, compatible with standard bolts
Thickness Range	2.0mm‑4.0mm optional, balancing rigidity and load‑bearing performance
Anti‑Corrosion Performance	Salt Spray Test ≥300 Hours, anti‑rust service life ≥5 years
Mechanical Performance	Stable load‑bearing capacity, reliable structural support
Installation Efficiency	Fast assembly, no on‑site welding needed
Customizable Items	Length, width, hole spacing, dimension, surface finish
Application	Solar mounting, cable tray, HVAC duct support, pipe hanging, industrial support
Applicable Environment	Indoor & outdoor scenarios; humid, coastal and industrial‑site conditions
Executive Standard	Compliant with GB/T 13912‑2002 galvanizing specification
Packaging	Waterproof woven bags + export‑grade wooden pallets, suitable for ocean freight

Applied range:

Within mechanical and industrial engineering fields, this 30×28 perforated L‑bracket serves as a multi‑purpose supporting component for multiple core systems. It is widely adopted inside HVAC and plumbing projects as pipe hangers, duct supports and equipment mounting brackets. Pre‑punched slots allow flexible position tuning for pipes and ducts, accommodating layout adjustments without expensive secondary processing.

For electrical rooms and data‑center facilities, it acts as key supporting hardware for cable trays and wiring harnesses, forming solid mounting frameworks for power and communication cables while keeping convenient access for routine maintenance.

Additionally, these L‑shaped brackets are extensively used in manufacturing plants and automation workshops to hold conveyor frames, machine bases and production‑line assemblies. Thanks to decent mechanical strength and electro‑galvanized anti‑rust coating, they can endure continuous vibration, moisture and chemical exposure inside factories, warehouses and processing workshops. Modular‑style construction guarantees good interoperability with mainstream strut‑channel accessories for seamless integration into various industrial setups.

Unistrut Channels 30x28 Electro Galvanized L Shape Punched Metal Bracket Modular Support Fitting for HVAC Pipe Hanging Systems

FAQ:

Q: Are you a factory or a trading company?

A: We are a professional manufacturing factory. You are welcome to visit our workshop anytime. Our workshop is equipped with a complete set of advanced steel‑structure processing equipment to guarantee stable product quality and competitive factory‑direct prices.

Q: What is your delivery time?

A: Our sales staff will confirm exact lead‑time based on your order details. Please notify our order management team in advance for bulk orders. Normally production finishes within 30 days upon receipt of deposit, partial shipment is acceptable for large‑volume orders.

Q: Can you offer design service?

A: Yes. Our engineering team develops customized solutions according to project requirements. We supply architectural drawings, structural sketches, processing drawings and installation drawings for your confirmation at different construction phases.

Q: What are your payment terms?

A: 30% deposit in advance; 70% balance to be settled before shipment.

Q: How do you control the quality of your product?

A: a) Design assessment: Identify hidden risks beforehand and deliver reliable engineering solutions;

b) Raw‑material screening: Only certified raw steel materials are adopted for production;

c) Production supervision: Precise manufacturing techniques, skilled operators and strict multi‑stage inspection.
