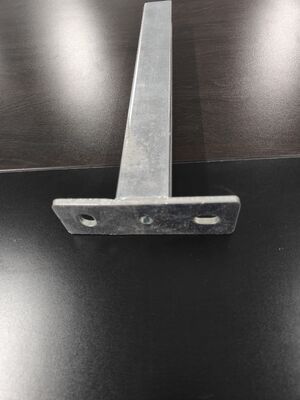

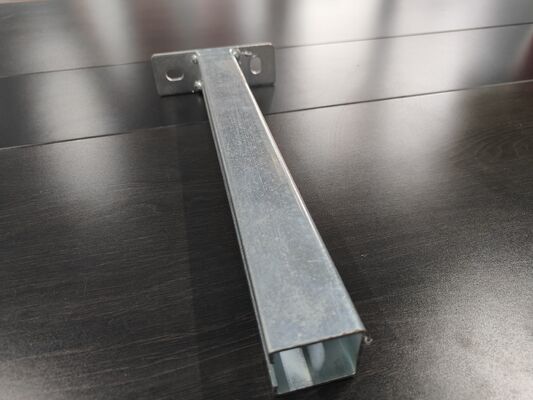

Unistrut Channels Steel Cantilever Brackets with Optional Diagonal Reinforcement for Support in Heavy Load and Medium Load Applications

Unistrut Channels Steel Cantilever Brackets with Optional Diagonal Reinforcement for Support in Heavy Load and Medium Load Applications

MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Plain Unbraced Straight Arm Steel Cantilever Bracket

Model Number:

Standard Sizes Available (Custom Sizes Supported)

Surface Treatment:

Hot-Dip Galvanized

Application:

Solar Mounting, Heavy Equipment Support, Industrial Cable Trays

Installation Efficiency:

Quick & Easy Assembly

Customization:

Custom Sizes, Load Ratings, Hole Patterns, Finishes

Anti-Corrosion Performance:

Salt Spray Test ≥500 Hours

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

Unistrut steel cantilever brackets

Heavy load Unistrut support brackets

Medium load Unistrut reinforcement brackets

Product Description

Custom‑Fabricated Cantilever Bracket, With or Without Diagonal Reinforcement Brace for Building & Utility Engineering

Product Description:

These tailor‑made steel cantilever brackets are supplied in two distinct configurations: reinforced type fitted with diagonal support, and plain type without bracing structure. They deliver highly flexible support solutions to satisfy diversified project demands. Whether you require high‑load‑bearing performance for heavy‑duty industrial scenarios or simple brackets for general building works, we are capable of custom‑tuning load capacity, overall dimension and surface finishing as per your technical requirements.

The brackets find extensive deployment in solar power projects, electric utility facilities, HVAC systems and general building construction. Diagonal‑reinforced brackets perform excellently under heavy‑load outdoor operating conditions, whereas non‑braced brackets fit light‑to‑medium‑load indoor‑use scenarios perfectly. Custom dimensions, hole layouts and surface treatments are all available to match your project‑specific conditions. Rigorous in‑house quality management guarantees stable product performance, and export‑oriented packaging secures safe global shipment.

Specification Item	Reinforced Diagonal Brace Bracket	Unbraced Straight Arm Bracket
Product Name	Heavy‑Duty Diagonal Reinforced Cantilever Steel Bracket	Plain Unbraced Straight‑Arm Steel Cantilever Bracket
Material	Premium Q235B Carbon Steel	Premium Q235B Carbon Steel
Surface Treatment	Hot‑dip Galvanized / Powder Coated	Electro‑galvanized / Powder Coated
Design Feature	Diagonal bracing for enhanced high‑load performance	No diagonal brace, compact & lightweight layout
Thickness Range	3.0mm‑6.0mm for heavy‑duty service	2.0mm‑4.0mm for light‑medium duty
Load Capacity	Max 500kg and above (subject to actual dimension)	Max 200kg (subject to actual dimension)
Anti‑Corrosion Performance	Salt spray test ≥ 500 hours	Salt spray test ≥ 300 hours
Application	Solar mounting, heavy‑equipment supports, industrial cable tray systems	HVAC supports, light pipe hangers, racking, electrical wiring supports
Customization	Custom size, load rating, hole layout, surface finish	Custom size, hole layout, surface finish
Packaging	Waterproof woven bags + export wooden pallets	Waterproof woven bags + export wooden pallets

Applied range:

Both diagonal‑reinforced and non‑braced cantilever brackets cover a wide spectrum of support‑oriented applications. Reinforced variants deliver superior structural stability for high‑load projects including industrial equipment bases, heavy pipe hangers and large‑scale solar installations. For light‑medium‑duty tasks such as storage racks, electrical cable trays and HVAC mounting, unbraced cantilever brackets serve as compact and multi‑purpose alternatives.

They are well‑suited for mixed‑function commercial buildings, where heavy‑duty equipment supports and light‑weight fixture mounts are both required. Customizable sizes, coatings and punching layouts enable adaptation for projects ranging from small residential refurbishments to large‑scale industrial construction. Universal structural design ensures good compatibility with standard fastener accessories, making them trustworthy options for contractors, consulting engineers and on‑site operators.

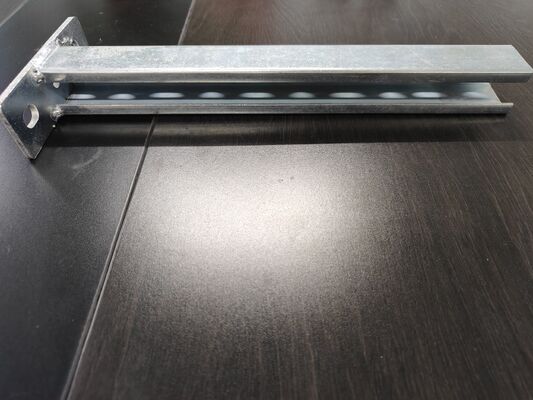

Unistrut Channels Steel Cantilever Brackets with Optional Diagonal Reinforcement for Support in Heavy Load and Medium Load Applications

FAQ:

Q: Are you a factory or a trading company?

A: We are a professional manufacturing factory. You are welcome to schedule a factory visit at any time. Our workshop is equipped with full sets of advanced steel‑structure processing equipment, which ensures stable product quality and competitive factory‑direct prices.

Q: What is your delivery time?

A: Our sales staff will confirm exact lead‑time based on your order. Please notify our order management team in advance for bulk orders. Normally production is finished within 30 days upon receipt of deposit, partial shipment is acceptable for large‑volume orders.

Q: Can you offer design service?

A: Yes. Our engineering team develops customized solutions according to project requirements. We provide architectural drawings, structural sketches, processing drawings and installation drawings for your confirmation at different construction phases.

Q: What are your payment terms?

A: 30% deposit in advance; 70% balance to be paid before shipment.

Q: How do you control the quality of your product?

A: a) Design assessment: Identify hidden risks beforehand and deliver reliable engineering solutions;

b) Raw‑material screening: Only certified raw steel materials are adopted for production;

c) Production supervision: Precise manufacturing processes, skilled operators and strict multi‑stage inspection.
