41×41 Double Combined C Strut Channel with Galvanized Coating and Customizable Length for Construction Support

Name: 41×41 Double Combined C Strut Channel with Galvanized Coating and Customizable Length for Construction Support
Brand: Langfang Yaoguang New Energy Technology Co., Ltd
SKU: 41x41
Price: 0.90 USD
Availability: InStock

Model Number:	41x41
MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T,PayPal,Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Shape:

Customization

Processing Performance:

Cutting, Decoiling, Punching, Welding, Bending

Usage:

Construction, Electromechanical, Machinery

Length:

1m-12m Or Customer's Requirments

Thickness:

0.5-3.0mm Or Customer's Requirements

Surface Treatment:

Galvanized Coated/Powder Coating

Technique:

Cold Bending/Roll Forming

Service:

Custom Metal Fabrication Service

Alloy Or Not:

Non-Alloy

Material:

Metal

Colour:

Customization

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

41x41 double C strut channel

customizable back-to-back C profile

C strut channel for construction support

Product Description

41×41 Double Combined C Strut Channel | Wholesale Customizable Back-to-Back C Profile for General Construction Support

Product Overview:

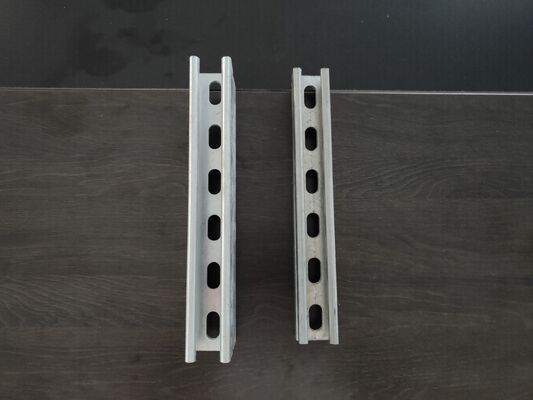

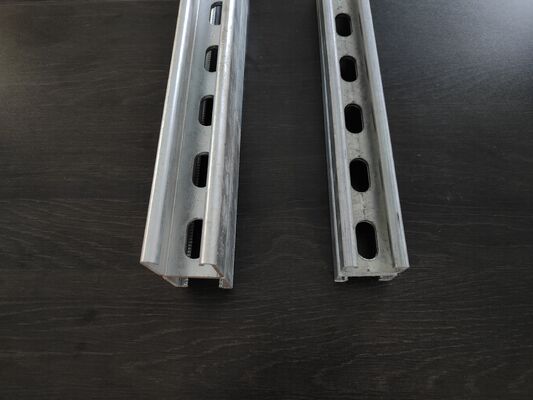

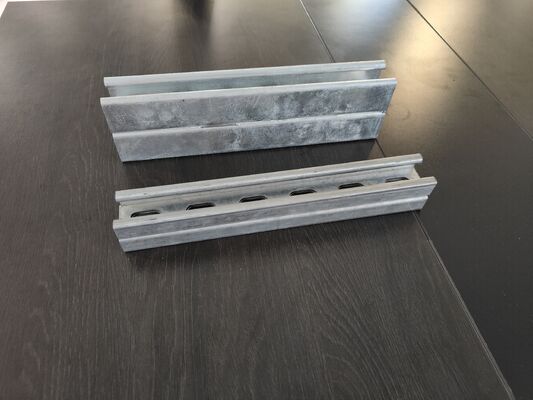

This 41×41 double spliced C strut is a heavy-duty cold-formed lightweight steel structural profile, available with multiple standard anti-corrosion surface finishes.It is assembled by two pieces of standard 41×21 single C channels joined back-to-back, with an overall cross-section of 41mm in height and 42mm in total width. Featuring reliable load capacity, stable corrosion resistance and fast modular assembly, it is widely used in medium-sized photovoltaic support frames, standard cable tray hangers, conventional seismic bracing systems and secondary supports for building curtain walls. It serves as a cost-effective medium-duty lightweight load-bearing component for all types of construction projects.

Manufactured from premium Q235B low-carbon steel on continuous cold bending production lines with high forming precision, the cross-section tolerance is controlled within ±0.3mm, and straightness is ≤1.5mm per meter. The double-spliced composite structure greatly improves overall sectional rigidity compared with single channels, with excellent bending, torsion and shear resistance. It can stably carry medium concentrated loads and meet the medium-load support requirements of most engineering projects.

Complete specifications are available: single channel wall thickness options include 1.5mm, 2.0mm and 2.5mm, with customizable thickness ranging from 1.0mm to 3.0mm. Standard factory lengths are 3m and 6m, and custom cut lengths from 1m to 12m are available according to project drawings. Each single C channel is pre-punched with standard 14×28mm elongated slotted holes with adjustable hole spacing. Matched with dedicated splicing connectors and fasteners, the double combined channel achieves fast bolted assembly without on-site welding, greatly shortening construction periods and reducing labor costs.

Multiple standard anti-rust surface options are provided: pre-galvanized, electro-galvanized and custom color powder coating, to meet the requirements of different indoor, outdoor and mildly corrosive environments.

Parameter Item	Detailed Information
Executed Standard	ASTM International Standard
Place of Origin	China
Alloy Classification	Non-alloy carbon steel
Fast Stock Lead Time	Within 7 working days
Cross-section Structure	Double combined C strut channel (two 41×21 single channels spliced back-to-back)
Overall Dimensional Tolerance	±1%
Core Application	Medium-load construction structural support channel
Product Name	41×21 Double Spliced Cold-Rolled C Metal Support Channel
Optional Surface Treatments	Pre-galvanized, Electro-galvanized, Custom Color Powder Coating
Surface Appearance	Silver zinc finish / Custom RAL colors
Quality Certification	ISO9001
Main Export Port	Tianjin Port
Core Function	Medium-duty engineering load-bearing support framework

Wide Application Coverage:

This 41×41 double spliced C strut with standard anti-rust treatment covers a wide range of application scenarios. It can be used as the main load-bearing diagonal support for large ground-mounted photovoltaic power stations and high-load rooftop distributed solar systems, heavy-duty suspension brackets for oversized cable tray systems, and the main load-bearing member of heavy mechanical & electrical pipeline seismic support assemblies.

Apart from new energy and electrical engineering, it can be used to build heavy lightweight support structures such as main keels for high-rise building decorations, large mechanical equipment bases and heavy storage racks. It is suitable for large industrial plants, super commercial complexes and outdoor heavy-load construction projects. Stable mechanical performance and long service life make it the preferred heavy structural material for all large lightweight load-bearing projects.

Frequently Asked Questions:

Q: Are you an in-house production factory or export trading firm?

A: We are a professional steel profile manufacturing factory. All global clients are warmly welcome to arrange factory site visits anytime. Our production workshop is equipped with full sets of advanced automated production machines for steel structure and metal channel processing. Full independent in-house production helps us stabilize product quality and deliver competitive factory direct wholesale prices.

Q: How long is your standard mass order delivery period?

A: Our sales specialists will confirm accurate production lead time according to your order specifications and quantity. Customers placing large bulk orders are recommended to coordinate production schedules with our order management team in advance. Normally all finished goods will be ready for shipment within 30 days after deposit receipt, and separate partial shipments are acceptable for oversized orders.

Q: Can your engineering team provide customized structural design service?

A: Yes, our professional engineering group can create exclusive structural schemes fully based on your project requirements. We will supply architectural sketches, structural schematic drawings, processing detail blueprints and field installation drawings for your step-by-step confirmation during the whole project cycle.

Q: What payment terms do we implement?

A: 30% advance deposit after order confirmation, the remaining 70% full balance must be settled before cargo delivery.

Q: How do we carry out full-range quality control throughout production?

A: a) Pre-design quality management: Foresee potential construction hidden risks in advance and formulate high-stability structural design solutions;

b) Raw material incoming inspection: Only fully qualified certified steel raw materials are put into mass production;

c) On-site production supervision: Precision automated manufacturing processes, skilled veteran operators and multiple rounds of strict quality spot checks during production.
