41×82 C-Section Fully Welded Trailing Arm Heavy-Duty Bracket with Full-Penetration Welding for Solar and Seismic Support

41×82 C-Section Fully Welded Trailing Arm Heavy-Duty Bracket with Full-Penetration Welding for Solar and Seismic Support

MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Shape:

C Channel

Processing Service:

Cutting, Decoiling, Punching, Welding, Bending

Thickness:

0.5-3.0mm Or Customer's Requirements

Material:

Q235/Q355 High Strength Steel

Application:

Building Operations

Bearing Capacity:

500-2000

Process:

Semi-welding + Stamping Forming

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

41×82 C-Section welded trailing arm

Heavy-duty bracket for solar support

C strut channel seismic support

Product Description

41×82 C-Section Fully Welded Trailing Arm | Heavy-Duty Bracket Fitting for Solar, Cable Tray & Seismic Support Systems

Product Description:

This fully welded trailing arm is a heavy-load core fitting purpose-built for 41×82 double-spliced C-section steel support systems. Fabricated from high-strength structural steel with full-penetration continuous welding technology, it delivers exceptional integral rigidity, vibration resistance and shear strength. It is widely deployed for solar mounting brackets, large-span cable tray supports, seismic bracing systems, factory steel structures and heavy-duty pipeline hanging applications.

Perfectly compatible with standard 41×82 back-to-back double-spliced C channels, the full-welded construction eliminates hidden risks associated with semi-welded joints. The compact integrated structure efficiently distributes heavy loads and improves wind and snow load resistance. It allows flexible position and angle adjustment during on-site assembly. Available with hot-dip galvanized or powder coated anti-corrosion finishes, it delivers long service life and high cost efficiency, making it ideal for industrial plants, municipal infrastructure projects and new energy power station construction.

Parameter Table:

Parameter Name	Specification	Unit
Material	Q235 / Q355 High-Strength Carbon Steel	—
Compatible C-Section Steel	41×82 Double-Spliced C-Strut Channel	mm
Processing Technology	Fully Welded + Stamped Forming	—
Anti-Corrosion Treatment	Hot-Dip Galvanizing / Powder Coating	—
Bearing Capacity	800–3000	N
Applicable Temperature	-40 ~ 80	℃
Service Life	≥15	Year

Installation and Usage Notes:

Pre-installation inspection: Inspect the fully welded trailing arm thoroughly before installation. Confirm there are no cracks, welding defects or rust on the weld seams and main body, and verify that the product specification matches the 41×82 C-section steel to be assembled.
Installation operation: Use professional tools to connect the trailing arm to the 41×82 C-channel. Ensure all welded and bolted joints are tightly fastened without looseness. Do not overload or force-fit components to avoid structural damage.
Positioning adjustment: Align the installation position with the stress points of the entire support system. Adjust the mounting angle according to actual site conditions to achieve uniform load distribution and avoid local stress concentration.
Post-installation inspection: Conduct a comprehensive inspection after installation. Test load-bearing performance and structural stability, and put into service only after all safety requirements are met.
Daily maintenance: Regularly inspect weld seams and connecting parts during service. Maintain or replace components in a timely manner if rust, looseness or deformation is found.
Safety warning: Strictly prohibit operation beyond the rated bearing capacity and applicable temperature range to prevent safety accidents.
Transportation and storage: Avoid heavy collision and extrusion during transportation and storage. Store in a dry and ventilated environment to prevent premature corrosion.

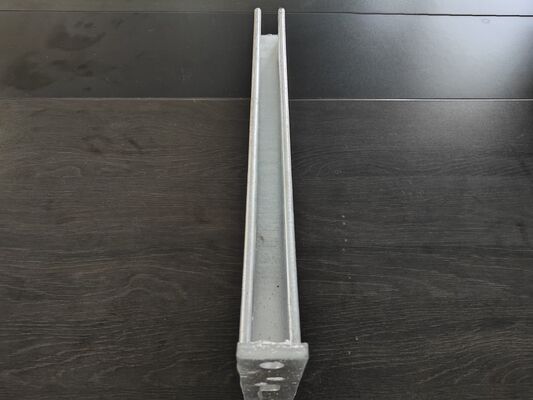

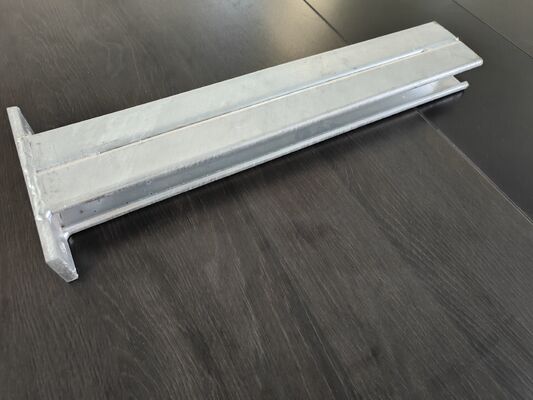

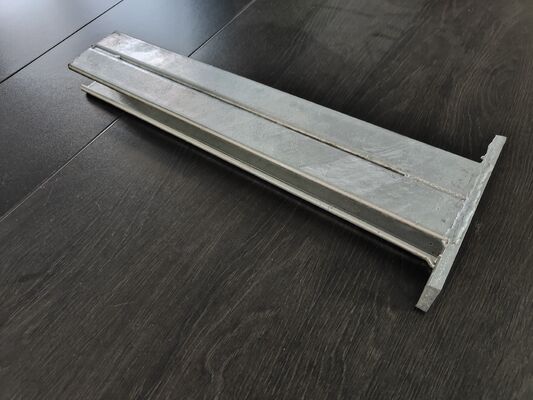

41×82 C-Section Fully Welded Trailing Arm Heavy-Duty Bracket with Full-Penetration Welding for Solar and Seismic Support

FAQ:

Q: Are you a manufacturing factory or a trading company?

A: We are a professional manufacturing factory specializing in steel structural fittings. You are welcome to visit our workshop at any time. Our facility is equipped with a full set of advanced steel structure processing equipment, which guarantees stable product quality and competitive factory-direct prices.

Q: What is your production lead time?

A: Our sales representative will confirm the exact lead time based on your order details. For bulk orders, please communicate with our production department in advance. Normally production is completed within 30 days after deposit receipt, and partial shipment is acceptable for large-volume orders.

Q: Can you provide customized design services?

A: Yes. Our experienced engineering team can provide tailored solutions according to your project requirements. We supply structural drawings, fabrication details and installation blueprints for your confirmation at different construction stages.

Q: What are your payment terms?

A: 30% deposit in advance, 70% balance settled before shipment.

Q: How do you control product quality?

A: a) Design control: Anticipate potential risks in advance and deliver reliable structural solutions;

b) Raw material control: Only qualified certified steel raw materials are adopted for production;

c) Production control: Precision fabrication techniques, skilled operators and strict in-process quality inspection.
