41×62 Hot Dip Galvanized Double Spliced C Strut Channel for Medium-Heavy MEP Support Systems

41×62 Hot Dip Galvanized Double Spliced C Strut Channel for Medium-Heavy MEP Support Systems

Model Number:	41×82 Double Spliced Metal Strut Channel
MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T,PayPal,Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Product Name:

Strut Channel / C Channel / Unistrut Channel

Processing Performance:

Cutting, Decoiling, Punching, Welding, Bending

Usage:

Construction, Electromechanical, Machinery

Length:

1m-12m Or Customer's Requirments

Thickness:

1.5mm / 2.0mm / 2.5mm (Customizable)

Surface Treatment:

Galvanized Coated/Powder Coating

Technique:

Cold Bending/Roll Forming

Service:

Custom Metal Fabrication Service

Alloy Or Not:

Non-Alloy

Material:

Metal

Suitable For:

Lightweight Supports, Photovoltaic Supports, Keels, Roof Trusses, Equipment Frames, Guardrails, Bridge Racks, Etc

Application:

Building Operations

Feature:

Corrosion Resistant, High Strength, Easy Installation, Modular Design

Color:

Silver Zinc / Stainless Steel Natural Color

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

hot dip galvanized c strut channel

double spliced c strut channel

back-to-back c strut channel

Product Description

41×62 Hot Dip Galvanized Double Spliced C Strut Channel | Mixed-Size Back-to-Back Profile for Medium-Heavy MEP Support Systems

Product Overview:

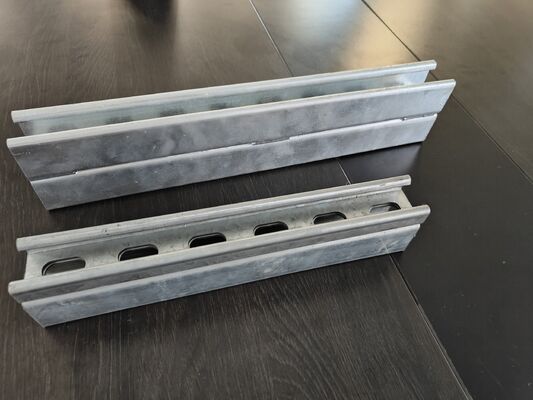

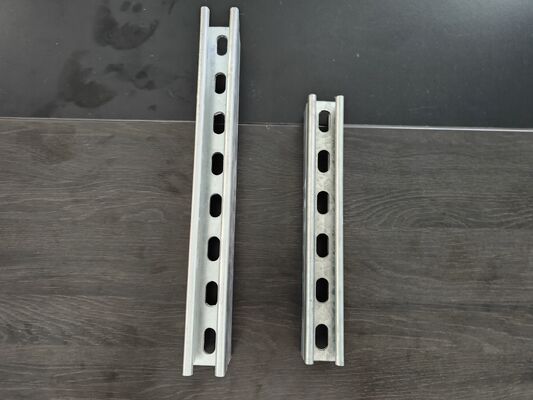

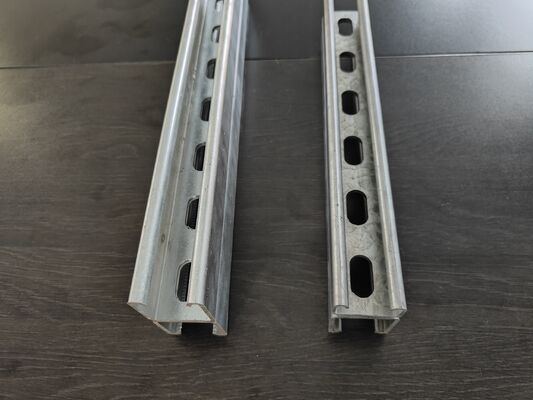

This 41×62 hot-dip galvanized double spliced C strut channel is a medium-heavy duty modular structural profile, specially developed for building MEP integrated hanging and support systems. It is formed by one 41×41 single C channel and one 41×21 single C channel spliced back-to-back, adopting high-quality Q235 carbon steel and professional cold roll forming technology.

The whole profile is treated with a hot-dip galvanizing process with a zinc layer thickness over 85μm, featuring uniform coating, compact texture and excellent long-term rust and corrosion resistance. It maintains stable structural performance in humid, acidic and alkaline environments, effectively extending the service life of pipeline and equipment support systems compared with ordinary single steel profiles.

Benefiting from the mixed-size double-spliced reinforced structure, this 41×62 strut channel delivers higher sectional rigidity than single channels, with outstanding bending and torsion resistance. It can evenly bear medium-heavy loads of medium-diameter pipelines, HVAC equipment, standard cable trays and electromechanical facilities, avoiding structural deformation caused by concentrated stress. Pre-punched standard elongated slotted holes support tool-free modular assembly, perfectly matched with standard spring nuts and connecting fittings, greatly improving on-site construction efficiency.

Parameter Table:

Parameter Category	Specific Information
Product Name	41×62 Mixed-Size Double Spliced Hot Dip Galvanized C Strut Channel
Alternative Name	Medium-heavy MEP support channel, combined C bracket channel
Spliced Structure	1pc 41×41 C-channel + 1pc 41×21 C-channel, back-to-back spliced
Raw Material	Q235 Carbon Steel; optional 304/316 Stainless Steel
Surface Treatment	Hot Dip Galvanizing (HDG, zinc layer ≥85μm); Pre-galvanized, Electro-galvanized optional
Surface Color	Silver metallic zinc tone
Cross Section Size	41mm height × 62mm total width; custom non-standard sizes available
Plate Thickness	1.5mm / 2.0mm / 2.5mm; custom thickness supported
Standard Length	1m / 2m / 3m / 6m; custom cut lengths available
Hole Type	Solid plain web, standard slotted long holes, custom drilling layout
Load Grade	Medium to Heavy Load; customized load-bearing design
Core Advantages	Mixed-size double-spliced reinforcement, high rigidity, superior corrosion resistance, modular quick installation, strong load capacity
Application Scope	MEP pipeline hanging systems, HVAC supports, fire protection piping, standard-span cable tray brackets, industrial equipment fixing, building secondary structural supports
Certification	ISO9001, RoHS Compliance
Custom Service	Full OEM & ODM support; customizable size, thickness, hole pattern and surface finish
Packaging	Steel strapping + export wooden pallet; customized packaging acceptable

Product Features:

This 41×62 mixed double spliced C strut channel adopts a reinforced dual-channel composite structure, effectively breaking through the load limit of a single C channel while saving material compared to full 41×41 double-spliced profiles. It provides stable and reliable medium-heavy load support for standard-span and conventional electromechanical pipeline projects. The integral hot-dip galvanized layer ensures long-term anti-corrosion performance for outdoor and humid industrial environments.

The standard modular design realizes fast bolt assembly without on-site welding, greatly improving construction efficiency and reducing project cost. With complete specifications and flexible customization, it is widely applicable to new building construction, old building renovation, industrial plant electromechanical installation and municipal supporting projects, serving as a cost-effective medium-heavy supporting profile for MEP systems.

FAQ:

Q1: Are you a professional manufacturer or trading company?

A: We are a professional steel strut channel factory with complete automated production and testing equipment. All products are fully self-produced, with stable quality and factory direct sales prices. Factory inspection is warmly welcomed.

Q2: What is your production lead time?

A: Standard stock orders can be delivered quickly. Bulk orders are normally completed within 30 working days after deposit confirmation. Partial shipment is acceptable for large projects.

Q3: Can you provide customized design service?

A: Yes. Our professional engineering team can provide exclusive structural design, processing drawings and installation solutions according to customer project requirements, supporting one-stop customized service.

Q4: What are your payment terms?

A: 30% deposit in advance, 70% balance settled before shipment.

Q5: How do you guarantee product quality?

A: We implement full-process quality control: standardized design risk prediction, strict incoming raw material inspection, automated precision production and multi-process finished product inspection, to ensure all products meet international quality standards.
