Medium-Duty Semi-Welded Trailing Arm for C-Section Steel with Q235/Q355 High Strength Steel and 500-2000 Bearing Capacity

Medium-Duty Semi-Welded Trailing Arm for C-Section Steel with Q235/Q355 High Strength Steel and 500-2000 Bearing Capacity

MOQ:	1000 pieces
Price:	$ 0.9-2.4
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Shape:

C Channel

Processing Service:

Cutting, Decoiling, Punching, Welding, Bending

Thickness:

0.5-3.0mm Or Customer's Requirements

Material:

Q235/Q355 High Strength Steel

Application:

Building Operations

Bearing Capacity:

500-2000

Process:

Semi-welding + Stamping Forming

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

Semi-Welded Trailing Arm for C-Section Steel

Medium-Duty Bracket for Solar Support

C Strut Channel Seismic Support System

Product Description

Semi-Welded Trailing Arm for C-Section Steel | Medium-Duty Bracket Accessory for Solar, Cable Tray & Seismic Support Systems

Product Description:

This semi-welded trailing arm is a core matching accessory for C-section steel support systems, manufactured from high-strength carbon steel. Featuring a semi-welded joint structure, it balances reliable connection strength and flexible on-site assembly, and is widely applied to solar mounting brackets, cable tray supports, seismic bracing systems, factory steel structures and pipeline support projects.

Fully compatible with standard C-section steel profiles, the precisely executed semi-welded joints ensure high tensile strength, vibration resistance and deformation resistance. The compact structure effectively distributes applied loads and improves wind and snow load resistance. It allows easy position and angle adjustment during installation. Available with hot-dip galvanized or powder coated anti-corrosion finishes, it delivers long service life and excellent cost efficiency, making it suitable for industrial construction, municipal engineering and new energy power station projects.

Parameter Table:

Parameter Name	Specification	Unit
Material	Q235 / Q355 High-Strength Carbon Steel	—
Compatible C-Section Steel	C100–C200 (Standard Sizes)	mm
Processing Technology	Semi-Welding + Stamped Forming	—
Anti-Corrosion Treatment	Hot-Dip Galvanizing / Powder Coating	—
Bearing Capacity	200–500	N
Applicable Temperature	-40 ~ 80	℃
Service Life	≥15	Year

Installation and Usage Notes:

Pre-installation inspection: Check the semi-welded trailing arm thoroughly before installation. Confirm there is no damage, cracks or rust on the weld joints and main body, and verify that the specification matches the C-section steel to be assembled.
Installation operation: Use professional tools to connect the trailing arm to the C-channel. Ensure all joints are tightly fastened without looseness. Do not overload or force-fit components to avoid structural damage.
Positioning adjustment: Align the installation position with the stress points of the entire support system. Adjust the mounting angle according to actual site conditions to achieve uniform load distribution and avoid local stress concentration.
Post-installation inspection: Conduct a comprehensive inspection after installation. Test load-bearing performance and structural stability, and put into service only after all safety requirements are met.
Daily maintenance: Regularly inspect weld seams and connecting parts during service. Maintain or replace components in a timely manner if rust, looseness or deformation is found.
Safety warning: Strictly prohibit operation beyond the rated bearing capacity and applicable temperature range to prevent safety accidents.
Transportation and storage: Avoid collision and extrusion during transportation and storage. Store in a dry and ventilated environment to prevent premature corrosion.

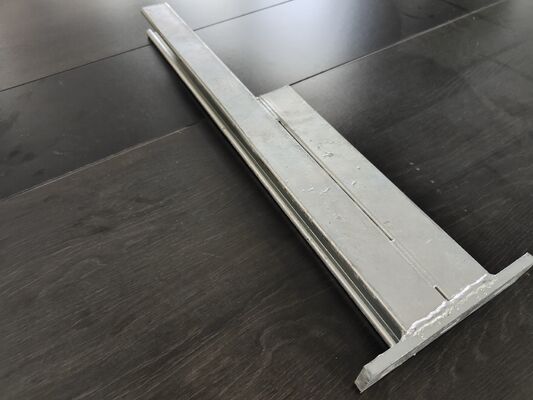

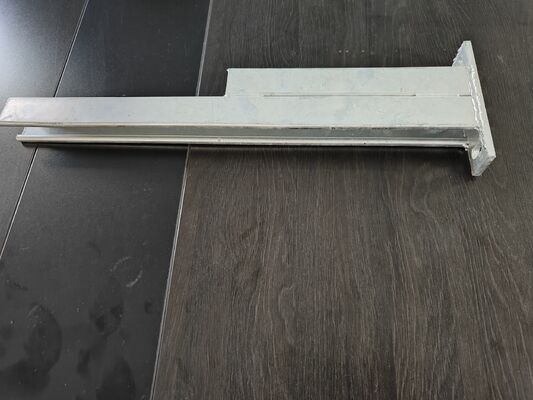

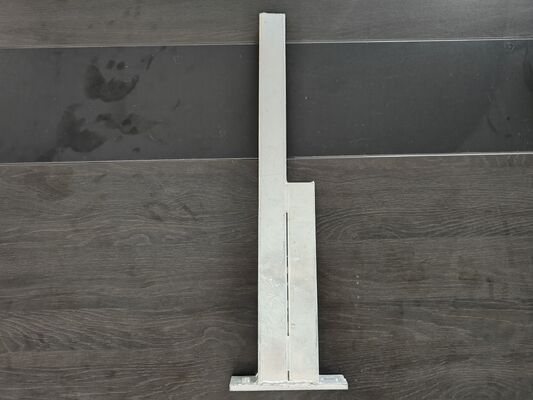

Medium-Duty Semi-Welded Trailing Arm for C-Section Steel with Q235/Q355 High Strength Steel and 500-2000 Bearing Capacity

FAQ:

Q: Are you a manufacturing factory or a trading company?

A: We are a professional manufacturing factory specializing in steel structural fittings. You are welcome to visit our workshop at any time. Our facility is equipped with a full set of advanced steel structure processing equipment, which guarantees stable product quality and competitive factory-direct prices.

Q: What is your production lead time?

A: Our sales representative will confirm the exact lead time based on your order details. For bulk orders, please communicate with our production department in advance. Normally production is completed within 30 days after deposit receipt, and partial shipment is acceptable for large-volume orders.

Q: Can you provide customized design services?

A: Yes. Our experienced engineering team can provide tailored solutions according to your project requirements. We supply structural drawings, fabrication details and installation blueprints for your confirmation at different construction stages.

Q: What are your payment terms?

A: 30% deposit in advance, 70% balance settled before shipment.

Q: How do you control product quality?

A: a) Design control: Anticipate potential risks in advance and deliver reliable structural solutions;

b) Raw material control: Only qualified certified steel raw materials are adopted for production;

c) Production control: Precision fabrication techniques, skilled operators and strict in-process quality inspection.
